ZXG50

SMB Deployment

Small and Branch Office SD-WAN Solutions

These platforms include the latest hardware and an array of new bandwidth and application management functions. These platforms are designed to improve an organizations "bandwidth contunity", which is to say that the ZXG operating system keeps your network secure and running in an efficent and aelerated manner, even during periods of high utilization and/or network failure.

ZeroOutages Appliance Back

Prevent Network Slowdowns
Eliminate network 'slowness' issues by reducing abusive use of network by non-critical network applications.

Easy Integration and Management
Each ZXG appliance includes built-in transparent mode installation and simple web-based configuration and reporting.

Efficient Use Of Secondary Links
Each ZXG appliance not only ensures automated failover of network connectivity in the event of an ISP outage, but it also can utilize the backup connection for lower priority traffic, like accelerated web downloads and email connectivity, thus making efficient use of the backup link and speeding up end-user connectivity.

Product Specifications

The following is a listing of specifications for this ZXG product. The ZXG platform is designed to incorporate our full feature set and/or can be licensed to include our full feature set without having to purchase additional hardware. Affordable, Scalable, and Reliable

Feature Value

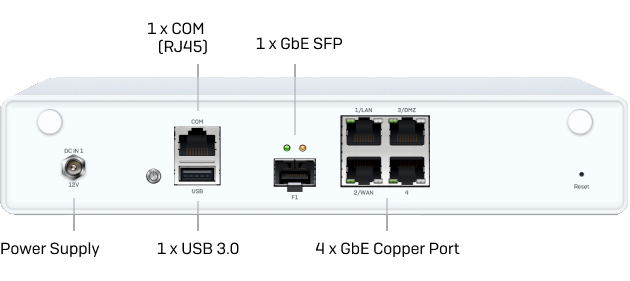

Ports (1)LAN, (3)WAN links, Console
Ethernet 4 x 10/100/1000 GigE AutoSense
Rack Mount / Size Yes / Desktop
Power Full Range 12V, 5A External
Redundant Power Optional
Certification FCC CE RoHS
Dimensions 9.05" x 8.98" x 1.73"
Shipping Weight 5lbs
Environmental 0 to 40C (32 to 104F)
ECC Memory Yes DDR3 (2GB)

Performance

Feature Value
Device Throughput 3700 Mbps
Recommended Users Up to 25
Next Generation Firewall 2500 Mbps
IPSec Tunnel Speed 2800 Mbps
IPS 1000 Mbps
Throughput rates are based on lab testing with average packet sizes between 512-1024 bytes.
